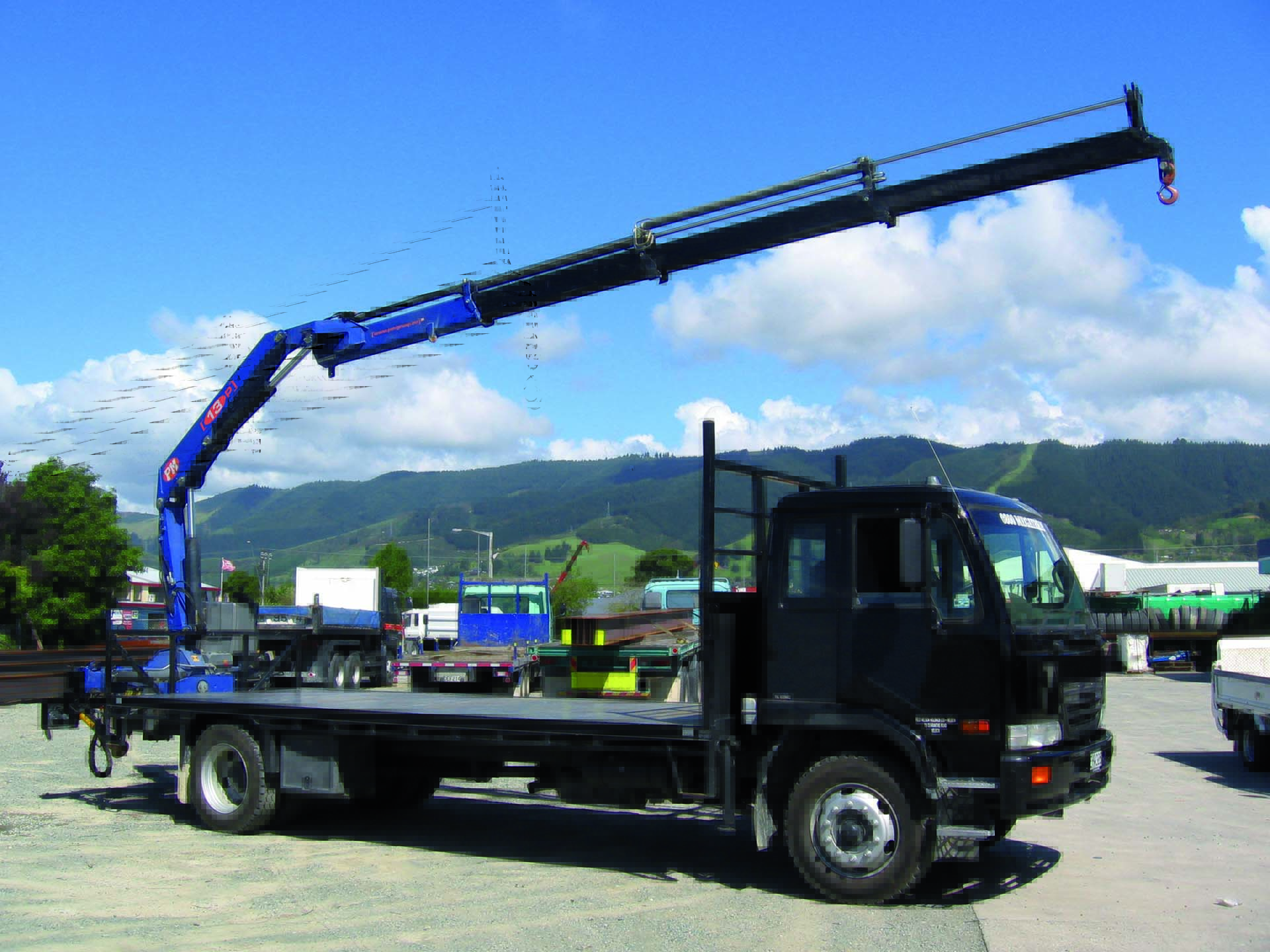

PM 13P
The technologically advanced electronic and hydraulic systems that characterize the entire small-medium range make the PM 13P series a reliable work tool in any working environment. Equipped as standard with a proportional hydraulic control valve block and multi-function radio control. Safety is guaranteed by the moment limiting device. A Type 1 and 2 Interlock stability system can be installed on this crane model.
An LC version is also available, with a hydraulically retractable first boom, which facilitates cumbersome and heavy short-range movements, while also optimizing the loading positions under the column. The basic machine can be equipped with up to 5 hydraulic extensions, giving a maximum horizontal outreach of 14.15 m and a maximum vertical outreach of 18.60 m. Jib configurations with 1 or 2 extensions are also available on the 3-extension version for a maximum horizontal outreach of 15.50 m and a maximum vertical outreach of 18.40 m.
CLASSIC PLUS
– Multi-function radio control
– Proportional control valve block
– Available in LC version
Vehicle type
- 2 Stabilizers STANDARD
- 2 Stabilizers XL
- 4 Stabilizers
Standard equipment
Manual pull-out outrigger booms
Safety Kit for outriggers
Proportional hydraulic control valve block
Sequential arm extension exit
Rack
Multi-function radio control
Optional
Jib
Hose racks
Air/oil heat exchanger
Hydraulic winch on crane
Tank
Manual extensions
LMU CE control system for mechanical extensions
Electro-hydraulic slewing limiter
Hydraulic pull-out outrigger booms
LC configuration
